當前位置：首頁 > 產品總匯 > SF6系列

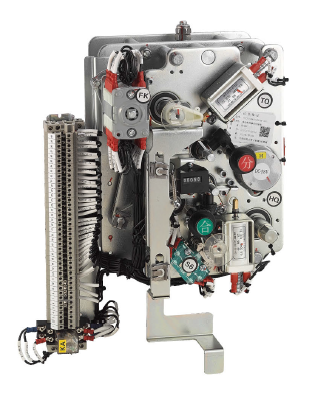

斷路器機構

所屬：SF6系列

返回列表

此產品相關資料下載

產品描述

產品概述：

CT-C/VIF系列產品適用于ABB SaeRing/Safe Plus SF6絕緣中壓開關設備，該彈黃操動機構符合GB1984-2003高壓交流斷路器的技術要求。機構具有重合閘功能，體積(尺寸)小、穩定性高、適應性強、安裝方便，電動接線產品用戶只需按圖標識插接線，幾分鐘即可完成繁瑣二次接線工作。

CT-C/VIF series products are suitable for ABB SaeRing/Safe Plus SF6 insulated medium voltage switchgear, which meets the technical requirements of GB1984-2003 high voltage AC circuit breaker. The mechanism has a reclosing function, small volume (size), high stability, strong adaptability, easy installation, electric wiring product users only need to plug in the wiring according to the figure identification, and the cumbersome secondary wiring work can be completed in a few minutes.

技術參數：

額定電壓: DC220V、DC110V、DC48V、DC24V。
Rated voltage: DC220V、DC110V、DC48V、DC24V.
機構輸出角度:約87° Mechanism outputAngle:about 87°
合閘平均速度(合前分后6mm):0.60±2m/s
The rigid-closing speed (within 5ms before rigid-closing): 0.6+0.2m/s
分閑平均速度(剛分后10ms內）:1.1±0.2m/s
The rigid-opening speed (within 10ms after rigid-opening): 1.1±0.2m/s
合閘時間: ≤60ms Closing time: ≤60ms
分閘時間: ≤50ms Opening time:≤50ms
操作力:≤110N Operating torque:≤110N
機械壽命:≥10000次 Mechanicallife:≥10000times
機構重量: 11.65KG Mechanism weight; 11.65KG
